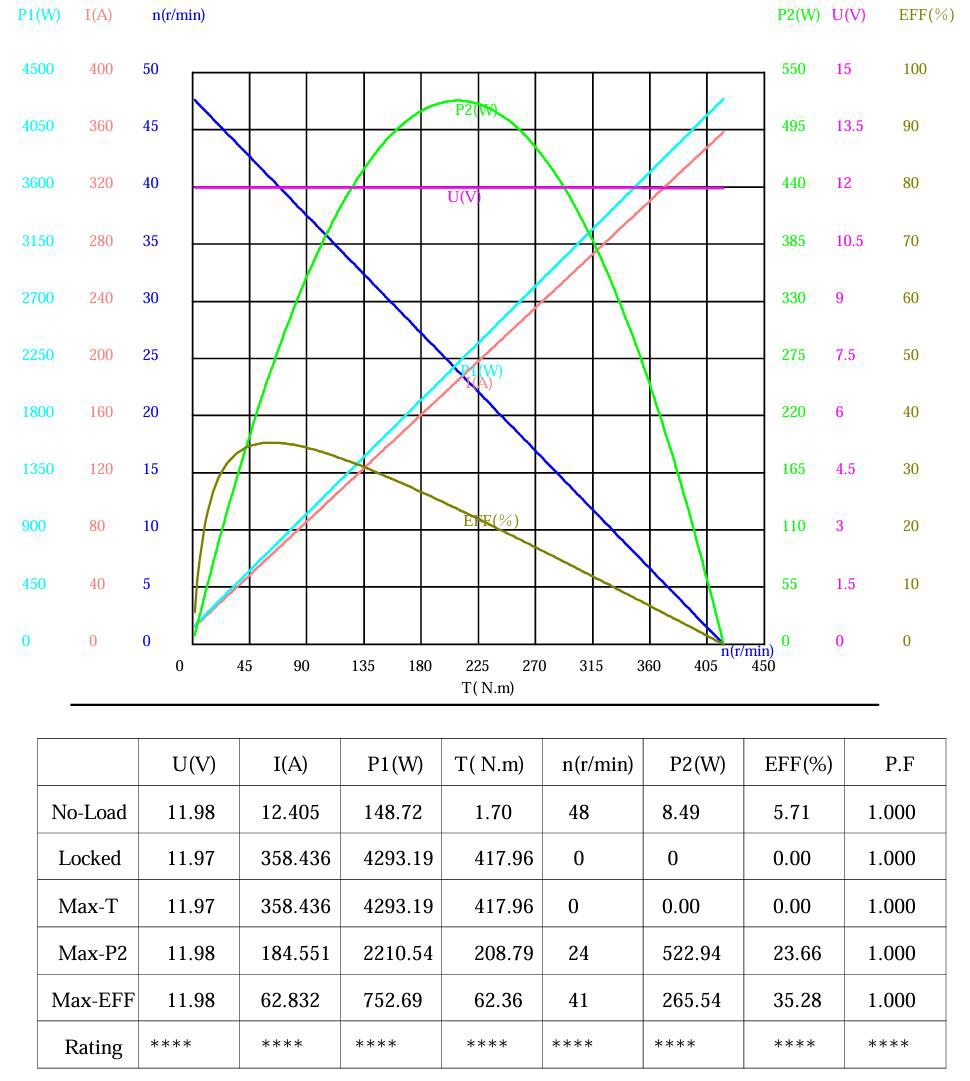

① Characteristics

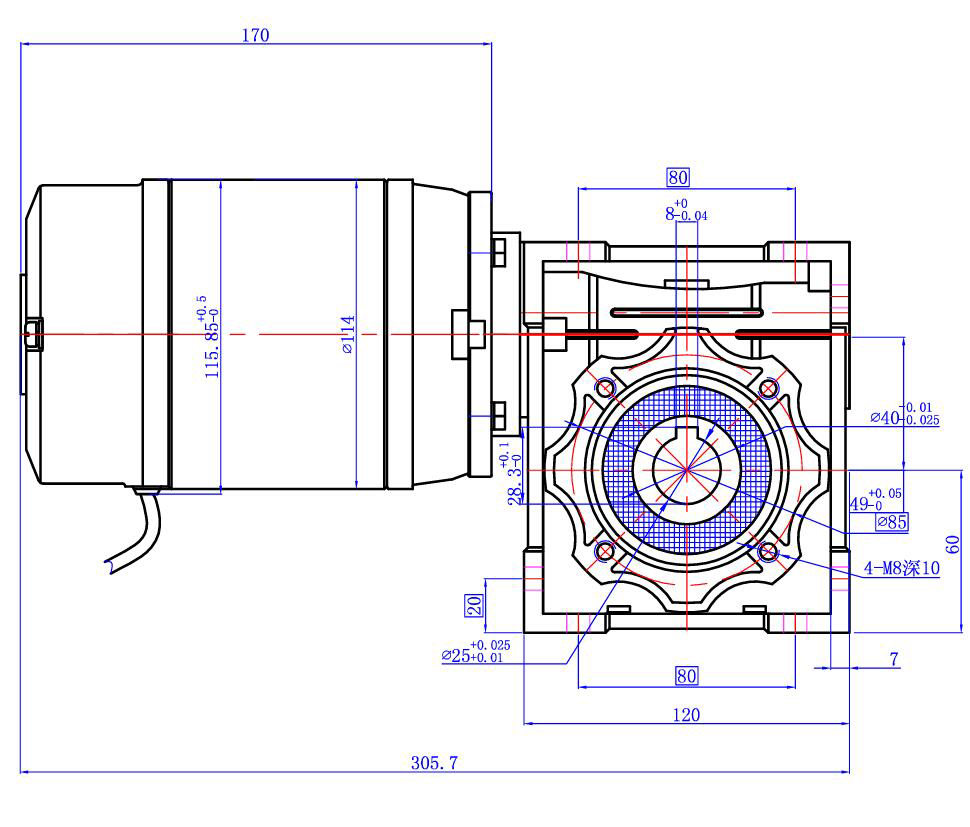

TYPICAL MODEL 115ZY170-2425/RV050i50 ( L=170MM )

·  Motor Size: 115mm OD

·  Motor Rated Output Power: 500W ( before gearbox)

·  24V DC

·  Torque 53N.m at Max. efficiency

·  Speed 42RPM at Max. efficiency

·  Reduction Ratio 50 : 1

·  Operation Mode S1

·  Max. efficiency 42% ( higher 50% than normal NMRV gearbox )

② Description
